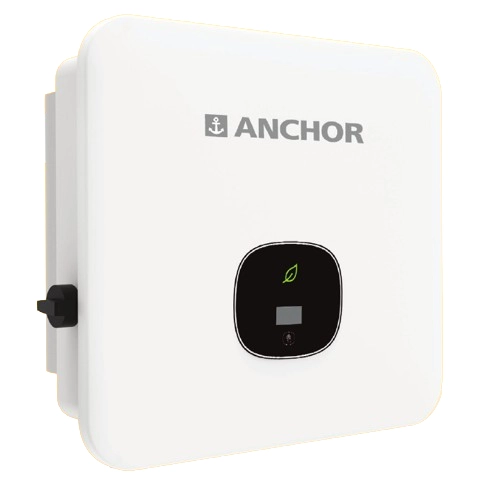

On-Grid Inverters > Anchor STELLAR-10KTL3X Grid Tie Inverter
Introducing the Anchor STELLAR-10KTL3X Grid Tie Inverter, a marvel of engineering precision crafted to revolutionize your solar energy experience. Born from a fusion of cutting-edge technology and meticulous design, this inverter stands as a testament to Anchor's commitment to innovation and sustainability. At its core lies a formidable 10kW power capacity, perfectly calibrated to meet the demands of residential and small-scale commercial solar installations. Its three-phase design ensures a seamless integration with the grid, delivering a steady flow of clean energy to power your home or business.
Engineered with efficiency in mind, the STELLAR-10KTL3X boasts an impressive conversion rate, maximizing energy output while minimizing losses. Equipped with advanced monitoring and control capabilities, it provides real-time insights into your system's performance, empowering you to optimize energy production and reduce costs. But it's not just about functionality; safety and reliability are paramount. With built-in protection mechanisms against overvoltage, overcurrent, and short circuits, rest assured that your investment is safeguarded against potential risks
| ★ | High system performance with efficient MPPT. |
| ★ | Easy usability - Plug & Play. |
| ★ | Quick configuration with OLED Display. |
| ★ | Reliable Performance with 98.6% maximum efficiency. |
| ★ | Lightweight, compact & Low Noise- Ideal for residential set-ups. |
| ★ | IP65/IP66 Enclosure for outdoor installations. |
| ★ | Low maintenance with smart cooling technology. |
| ★ | Real time monitoring of your energy consumption. |
| ★ | User friendly Informative LCD Display. |
| AC grid connection type | Three-phase (3W+N+PE) |
| Max. recommended PV power | 15000W |
| Max. DC voltage | 1100V |
| Initial voltage | 200V |
| Nominal voltage | 580V |
| MPPT voltage range | 1000V |
| No. of MPPT | 2 |
| No. of PV strings per MPPT | 1 |
| Max. input current per MPPT | 13.0A |
| Max . short-circuit current per MPPT | 16.0A |
| AC nominal power | 10000W |
| Max. AC apparent power | 11000VA |
| Nominal AC voltage (range) | 230V/400V (340-440V) |
| AC grid frequency (range) | 50Hz (45-55Hz) |
| Max. output current | 16.7A |
| Adjustable power factor | 0.8 |
| Max .efficiency | 98.6% |
| MPPT efficiency | 99.9% |
| Dimensions (W x H x D) | 425 x 387 x 178 mm |
| Warranty | 10 Years |
| Warranty Policy | If the product is broken/damaged it will not be covered in the warranty. Click Here for Panasonic Warranty Statement. |
| Disclaimer | We strive for accurate warranty information, but manufacturers may update terms. Please visit their website for the latest details. |
