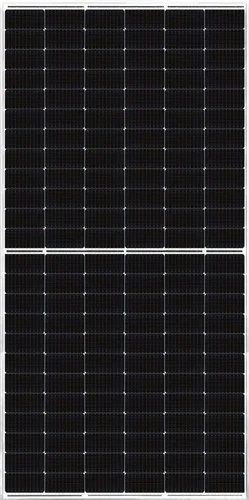

Solar Panels > Rayzon 545Wp Monoperc Monofacial PV Module
Experience solar energy redefined with Rayzon's next-generation Mono PERC 540Wp panel. We're not just talking efficiency, we're talking about a powerhouse packed with cutting-edge technology and an industry-leading warranty. Stringent quality control ensures unmatched durability and peak efficiency over the panel's lifespan.
Enjoy superior power output even in low-light conditions, thanks to Rayzon's advanced engineering. Enhance your roof's aesthetics with these visually appealing panels, adding a touch of modern elegance.
| ★ | AR Coated Tempered Glass Anti-Reflective Module Surface. |
| ★ | Excellent Module Efficiency with Mono PERC Cells. |
| ★ | Positive Power Tolerance Up to 5W. |
| ★ | Pre and Post EL Checking to ensure Defect Free Modules. |
| ★ | IP68 Juncon Box for Long Term Endurance. |
| ★ | 100% High Voltage Testing to Ensure Safety. |
| ★ | High Module Reliability using Multi Busbar Half-cut Cell Technology. |
| ★ | 30 Years Industry Leading Linear Power Output Warranty. |
| Model Number | RS545WC |
| Nominal Maximum Power (Pm) | 545 Watts |
| Open Circuit Voltage (Voc) | 49.78V |
| Short Circuit Current (Isc) | 13.59A |
| Voltage at Maximum Power (Vmp) | 42.01V |
| Current at Maximum Power (Imp) | 12.98A |
| Number of Cells | 144 |
| Module Efficiency | 21.13% |
| Fill Factor | 80.24% |

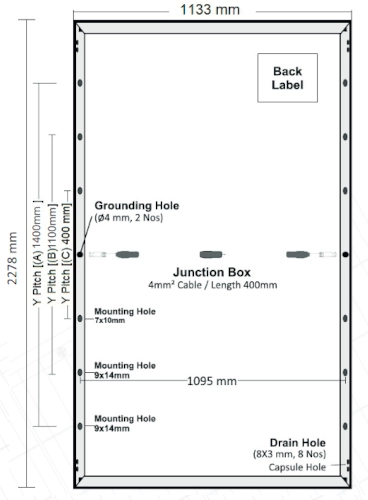

| Dimensions (LxWxT) - mm | 2278 x 1133 x 40 |
| Mounting Holes Pitch (Y) – mm | [A] 1400, [B] 1100, [C] 400 |
| Mounting Holes Pitch (X) – mm | 1095 |
| Solar Cell Type | MONO PERC 10BB |

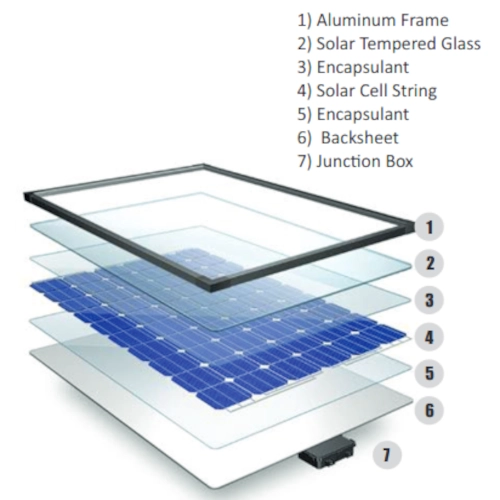

| Front Cover | ARC coated Low Iron Tempered Glass (3.2 mm thick ) |
| Encapsulate | Ethylene Vinyl Acetate (EVA) Sheet - PID free and UV resistant |
| Frame Material | Silver Anodized Aluminum Alloy (6063, Temper T5, silver colour) |
| Junction Box | Split Junction Box (3 nos with Bypass Diode) - Weatherproof (IP68), MC4 Compatible |
| Warranty | 10 years product warranty on materials and workmanship and 30 years linear power output warranty. |
| Warranty Policy | If the product is broken/damaged it will not be covered in the warranty. Click Here for Rayzon Solar's Warranty Statement. |
| Disclaimer | We strive for accurate warranty information, but manufacturers may update terms. Please visit their website for the latest details. |
