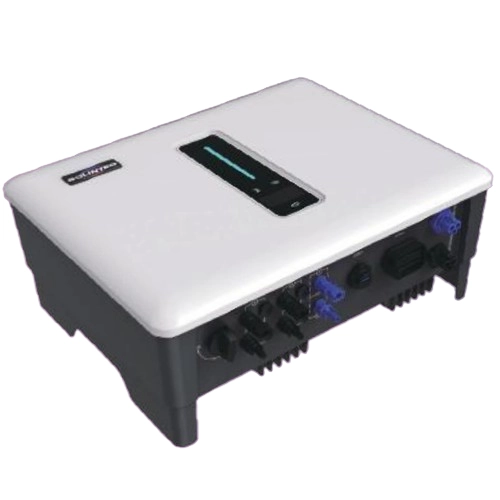

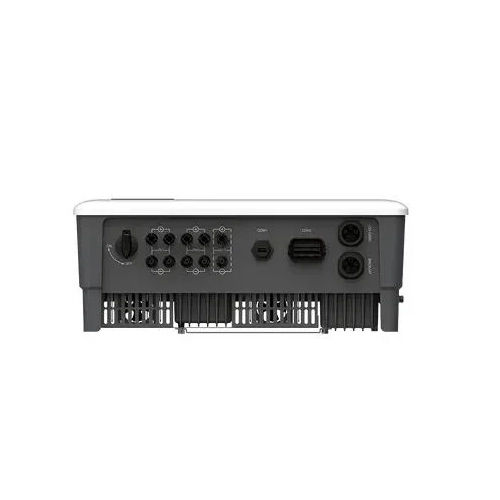

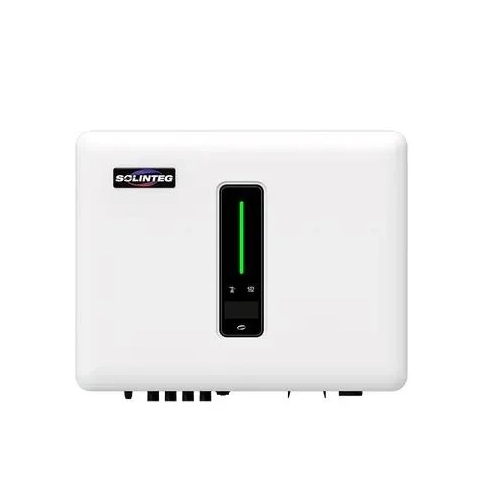

Hybrid Inverters > Solinteg MHS-3-30 Hybrid Inverter





                            Unleash the full potential of your solar panels with the Solinteg MHS-3-30 Hybrid Inverter, your gateway to a smarter, more resilient home energy experience. This single-phase powerhouse seamlessly integrates solar power generation, battery storage, and grid connection, maximizing your self-reliance and minimizing dependence on the utility grid.
Boasting an impressive 97.6% maximum efficiency, the MHS-3-30 squeezes every drop of energy from your solar panels, ensuring you get the most out of your investment. Its innovative design allows for bi-directional power flow, enabling you to store excess solar energy during the day for use at night or during power outages. With a lightning-fast 10ms UPS-level switching time, you'll enjoy uninterrupted power even in the event of grid fluctuations, keeping your home safe and comfortable.
| ★ | 110% continuous AC output overloading. |
| ★ | 130% maximum back-up output overloading @60s. |
| ★ | 160% DC oversizing. |
| ★ | Compact and elegant design with integrated die-casting technology. |
| ★ | Convenient installation and O&M with horizontal design and quick plug terminals. |
| ★ | Easy data check via both OLED display and Application. |
| ★ | Intelligent energy management with Solinteg built-in EMS. |
| ★ | 85-450V wide battery voltage range. |
| AC grid connection type | Single-phase |
| Recommended Max. input power | 4.8kW |
| Start-up voltage | 80V |
| Max. DC Input Voltage | 600V |
| Rated DC input voltage | 360V |
| MPPT voltage range | 100V - 550V |
| Number of MPPT | 1 |
| No. of DC inputs per MPPT | 1 |
| Max. input current | 15A |
| Max. short-circuit current | 20A |
| Battery type | Lithium Battery (with BMS) |
| Battery voltage range | 85V - 450V |
| Maximum charging/discharge current | 30A/30A |
| Rated output power | 3.00kW |
| Rated output apparent power | 3.00kVA |
| Max. output apparent power | 3.30kVA |
| Max. input apparent power | 6.0kVA |
| Max. Charging Power of Battery | 3.0kW |
| Rated AC voltage | L/N/PE; 220/230/240V |
| Power Factor | 0.8 |
| Max. output current | 15.0A |
| Maximum efficiency | 97.6% |
| Warranty | 60 months. |
| Warranty Policy | If the product is broken/damaged it will not be covered in the warranty. |
| Disclaimer | We strive for accurate warranty information, but manufacturers may update terms. Please visit their website for the latest details. |
