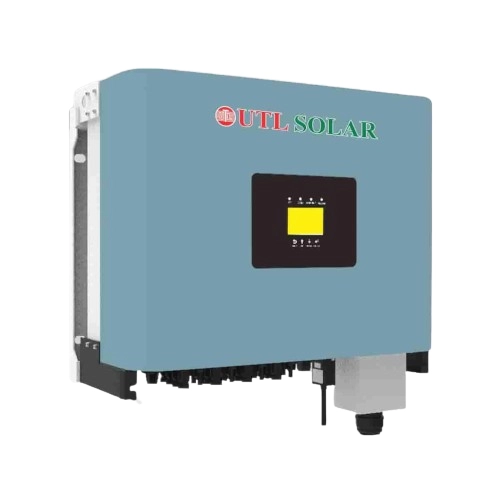

Grid-Tie Inverters > UTL On-Grid Solar Inverter 40kW F3 GT
With its robust 40kW capacity, the UTL F3 GT stands as a testament to high-capacity solar energy management, adeptly catering to substantial power requirements while maintaining an impressively minimalistic footprint. This inverter is encased within a durably constructed chassis, thoughtfully designed to withstand the rigors of diverse environmental conditions, guaranteeing longevity and consistent operation.
Compatibility with a wide range of photovoltaic panels and an emphasis on safety, evidenced by comprehensive protective measures against overvoltage, under voltage, and grid anomalies, position the UTL F3 GT as a versatile and secure choice for industrial-scale solar applications. Its seamless grid integration capabilities are complemented by a low harmonic distortion rate, safeguarding both the inverter and grid from potential efficiency losses and contributing to a cleaner, more sustainable energy solution.
| ★ | Transformer-less inverter for better compatibility. |
| ★ | Low harmonic current distortion (THDi<3%). |
| ★ | AC & DC Side Type-II 20kA SPD (Double Surge Protection). |
| ★ | High MPPT Efficiency upto 99%. |
| ★ | Supportable for Wi-Fi and monitoring applications. |
| ★ | IP65 certified grid-tie solar inverters. |
| ★ | Wide AC Voltage Range (160V to 290V). |
| ★ | Power Export Limiting Configuration. |
| Operating Phase | Three-phase |
| Maximum DC Input Power | 52kW |
| Rated Ouput Power | 40kW |
| Maximum Active Power | 44kW |
| Maximum DC Input Voltage | 1000V |
| Start-up DC Input Voltage | 250V |
| MPPT Operating Range | 200V - 850V |
| Maximum DC Input Current | 40A + 40A + 40A |
| Maximum Short Circuit Current | 64A + 64A + 64A |
| Number of MPP Trackers | 3 |
| Number of Strings per MPP Tracker | 3 |
| Display | LCD 240 x 160 |
| Dimensions (LxWxT) - mm | 647.5 x 537 x 303.5 |
| Warranty | 10 Years. |
| Warranty Policy | If the product is broken/damaged it will not be covered in the warranty. Click Here for UTL Warranty Statement. |
| Disclaimer | We strive for accurate warranty information, but manufacturers may update terms. Please visit their website for the latest details. |
