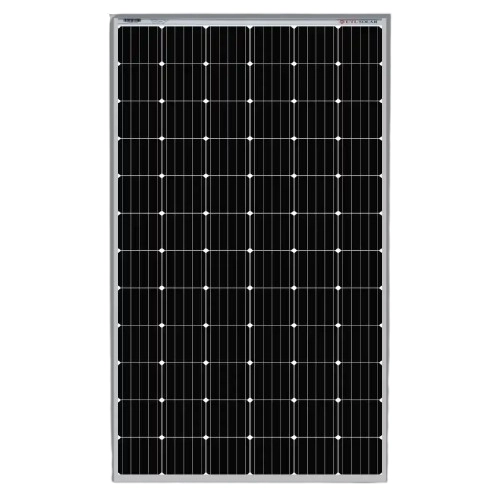

Solar Panels > UTL Solar PV Module 225Wp 12V
UTL solar panels stand at the forefront of solar innovation, representing the latest advancements in solar technology. These cutting-edge solar photo-voltaic panels are meticulously crafted by expert engineers, featuring a composition of premium A-grade solar cells.
Noteworthy among UTL's offerings is the mono solar panel 225 watt, a cost-effective solar solution specially tailored for the unique environmental conditions of India.
| ★ | High module conversion efficiency up to 19.32% through innovative five busbar cell technology. |
| ★ | Low degradation and excellent performance under high temperature and low light conditions. |
| ★ | A robust aluminum frame ensures the modules withstand wind loads up to 3600Pa and snow loads up to 5400Pa. |
| ★ | High reliability against extreme environmental conditions. |
| ★ | Potential induced degradation (PID) resistance. |
| ★ | Positive power tolerance of 0~+3 %. |
| Nominal Maximum Power (Pm) | 225 Watts |
| Open Circuit Voltage (Voc) | 24.37V |
| Short Circuit Current (Isc) | 11.82A |
| Voltage at Maximum Power (Vmp) | 20.25V |
| Current at Maximum Power (Imp) | 11.12A |
| Maximum System Voltage | 1500V |

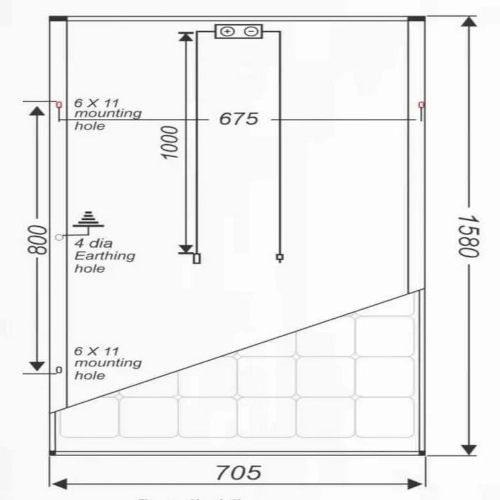

| Dimensions (LxWxT) - mm | 1580x705x35 |
| Mounting Holes Pitch (Y) – mm | 800 |
| Mounting Holes Pitch (X) – mm | 675 |
| Solar Cells per Module (Units) | 72 |
| Solar Cell Type | Mono Perc-Crystalline Silicon |
| Front Cover | Glass -- Non ARC coated Tempered and Low Iron |
| Encapsulate | PID resistent Ethylene Vinyl Acetate |

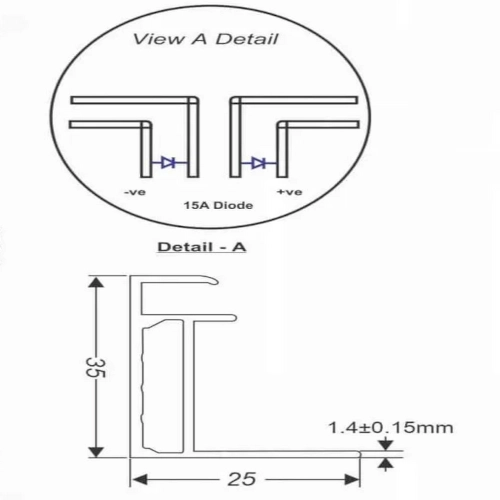

| Frame Material | 10 micron Anodized Aluminum |
| Junction Box | Weatherproof Nylon IP 68 |
| Warranty | 10 years product warranty on materials and workmanship and 25 years Industry-leading linear power output warranty. |
| Warranty Policy | If the product is broken/damaged it will not be covered in the warranty. Click Here for UTL's Warranty Statement. |
| Disclaimer | We strive for accurate warranty information, but manufacturers may update terms. Please visit their website for the latest details. |
