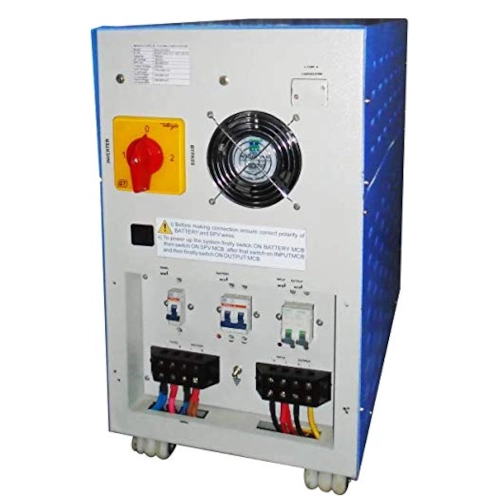

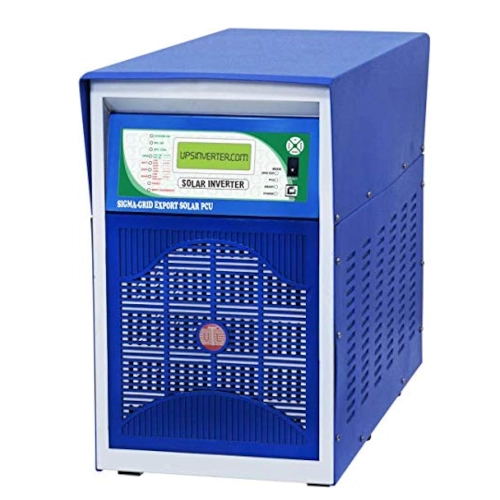

Hybrid Inverters > UTL Sigma Solar PCU 10180 10kVA 180V

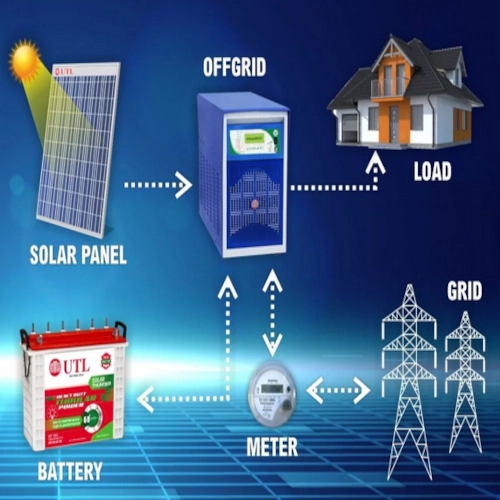

Dive into the future with the UTL Sigma Solar PCU 10180, a marvel of modern engineering that transforms the very essence of solar energy into a lifeline for your home or business. This isn't just an inverter; it's a 10kVA/180V beacon of hope for a sustainable future, crafted for the pioneers, the eco-warriors, and the visionaries. This hybrid solar inverter stands at the crossroads of innovation and versatility, capable of drawing power from the sun, batteries, and even the grid, ensuring you have a constant energy supply. Yet, it's the silent guardian that respects Mother Earth, prioritizing renewable sources and stepping in with grid power only when absolutely necessary.
Envision your home as a canvas, with the UTL Sigma Solar PCU 10180 as your brush, painting a future where energy is clean, green, and limitless. It's an invitation to join an elite club of forward-thinkers who don't just follow trends but set them. The UTL Sigma Solar PCU 10180 is not just an investment in solar power; it's an investment in a legacy. Welcome to your energy renaissance.
| ★ | Inbuilt rMPPT charge controller (30% more efficient). |
| ★ | DSP based Pure Sine Wave Design. |
| ★ | Priority-based working modes – Smart/PCU/Hybrid. |
| ★ | Stand-alone and grid-interactive working modes. |
| ★ | IEC 61683, 61727, 60529, 60068-2 (1,2,14,30) & 62116 certified. |
| ★ | Inbuilt AC & DC energy meter with USB based communication. |
| ★ | LCD display with all AC and DC parameters. |
| ★ | Robust design with reverse AC voltage protection. |
| ★ | Maximum preference for solar power. |
| VA Rating | 10kVA |
| Input Voltage Range (PV) | 300-625V |
| Operating DC Voltage | 180V |
| Solar Charge Controller Rating | 55A |
| Type of Charger | MPPT |
| Peak Efficiency | 95% |
| Battery Charging Voltage by SPV | 12.8-16V |
| Maximum PV Power | 10kW |
| Warranty | 60 months |
| Warranty Policy | If the product is broken/damaged it will not be covered in the warranty. Click Here for UTL Warranty Statement. |
| Disclaimer | We strive for accurate warranty information, but manufacturers may update terms. Please visit their website for the latest details. |
