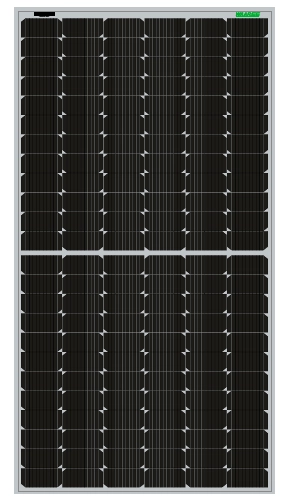

Solar Panels > Waaree WSMD-530 Arka Series 530Wp Solar Panel
Introducing the Waaree WSMD-530 Arka, the pinnacle of solar technology, designed to revolutionize your energy generation. This powerhouse panel, boasting 144 high-efficiency mono PERC cells, delivers exceptional performance, unmatched durability, and maximized returns on your investment.

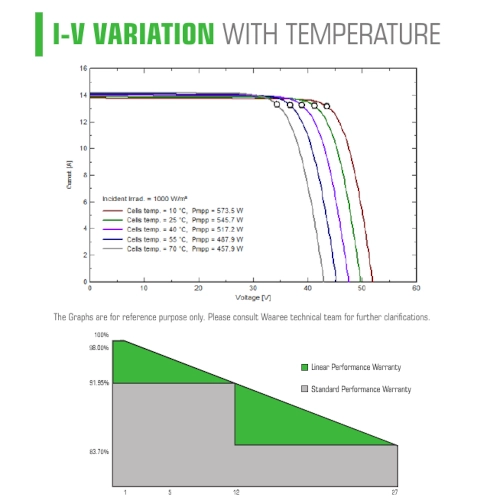

Generate a staggering 530Wp of clean energy, maximizing your energy harvest even in limited spaces. Benefit from a linear performance warranty, guaranteeing 90.90% power output even after 12 years and 80.80% after 25 years.
| ★ | Highest reliability and enhanced crack tolerant MBB module. |
| ★ | Module utilizing Half cut cell for optimum performance. |
| ★ | Highly efficient Mono PERC M10 cells. |
| ★ | Best in class thermal coefficients. |
| ★ | Highest commercial gains, lower LCOE. |
| ★ | Split junction box for improved heat dissipation. |
| ★ | Increased shade tolerance. |
| Nominal Maximum Power (Pm) | 530Watts |
| Open Circuit Voltage (Voc) | 49.31V |
| Short Circuit Current (Isc) | 13.69A |
| Voltage at Maximum Power (Vmp) | 41.45V |
| Current at Maximum Power (Imp) | 12.80A |
| Module Efficiency | 20.59% |
| Solar Cells per Module (Units) / Arrangement | 144 cells / (12x6 || 12x6) |

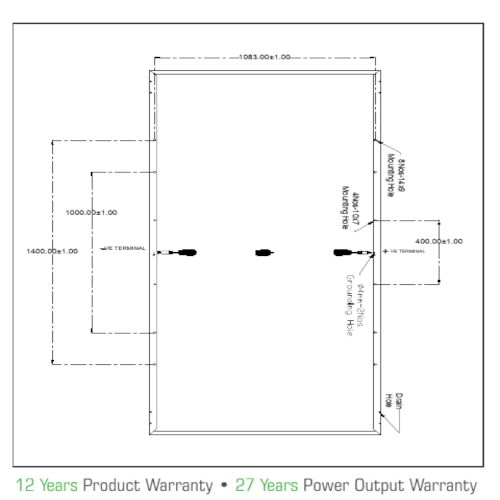

| Dimensions | 2272 mm (L) x 1133 mm (W) x 35 mm (T) |
| Front Cover (Material / Thickness) | 3.2 mm Low Iron and Tempered glass with ARC coating |
| Solar Cell Type and Size | Mono PERC, 91 x 182 mm |
| Encapsulate | PID Free & UV Resistant |
| Frame | Anodized Aluminium Alloy |
| Junction Box | Weatherproof PPO IP68 |
| Warranty | 12 Years Product Warranty and 27 Years Power Output Warranty. |
| Warranty Policy | If the product is broken/damaged it will not be covered in the warranty. Click Here for Waaree's Warranty Statement. |
| Disclaimer | We strive for accurate warranty information, but manufacturers may update terms. Please visit their website for the latest details. |
